Meander Kbely Standards

A. BUILDING CONSTRUCTION

Basics

spread foundation – foundation slab on piles

Vertical Structures

loadbearing walls combine cast-in-place and masonry construction
non-loadbearing walls are designed using a drywall system
installation partitions in bathrooms and utility rooms are made of plasterboard construction

Horizontal Structures

ceilings use cast-in-place reinforced concrete construction
stair flights are made of reinforced concrete with a sealing dust-free coating

Facades

the facade uses an ETICS external thermal insulation system Depending on the building type, supplemented with projecting wooden elements – as per the architectural design

Roof

flat roof – single-layer structure insulated with EPS (tapered wedges) and provided with waterproofing

Balconies and front gardens

facade lighting
frost-proof valve for ground-floor flats with front gardens
front-garden fencing combining greenery with wire-mesh infill
outdoor socket – 230 V

B. INTERIOR FINISHES

Floors – living areas

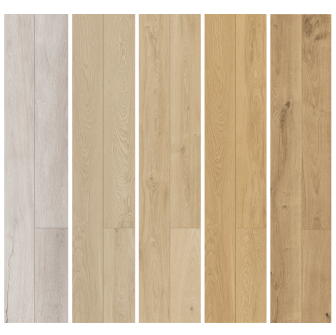

living room, kitchenette and hallway – floating laminate floor

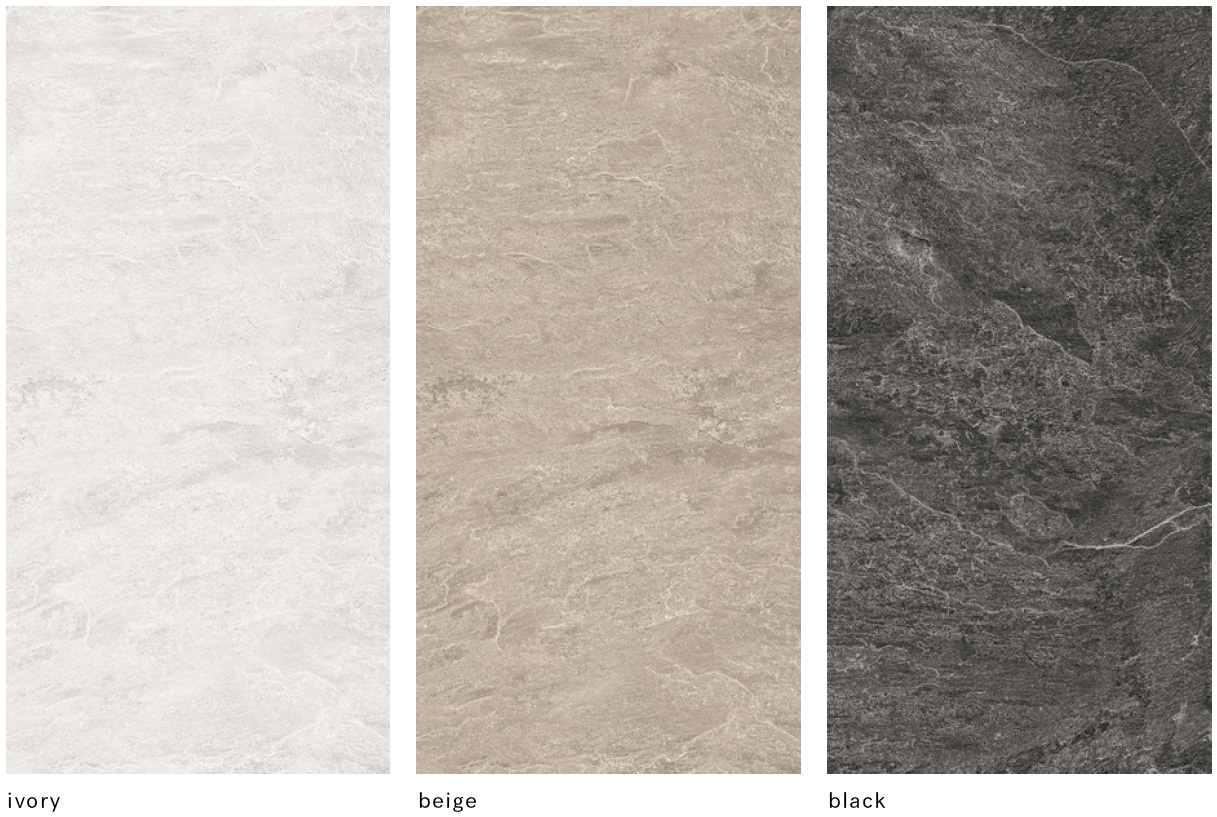

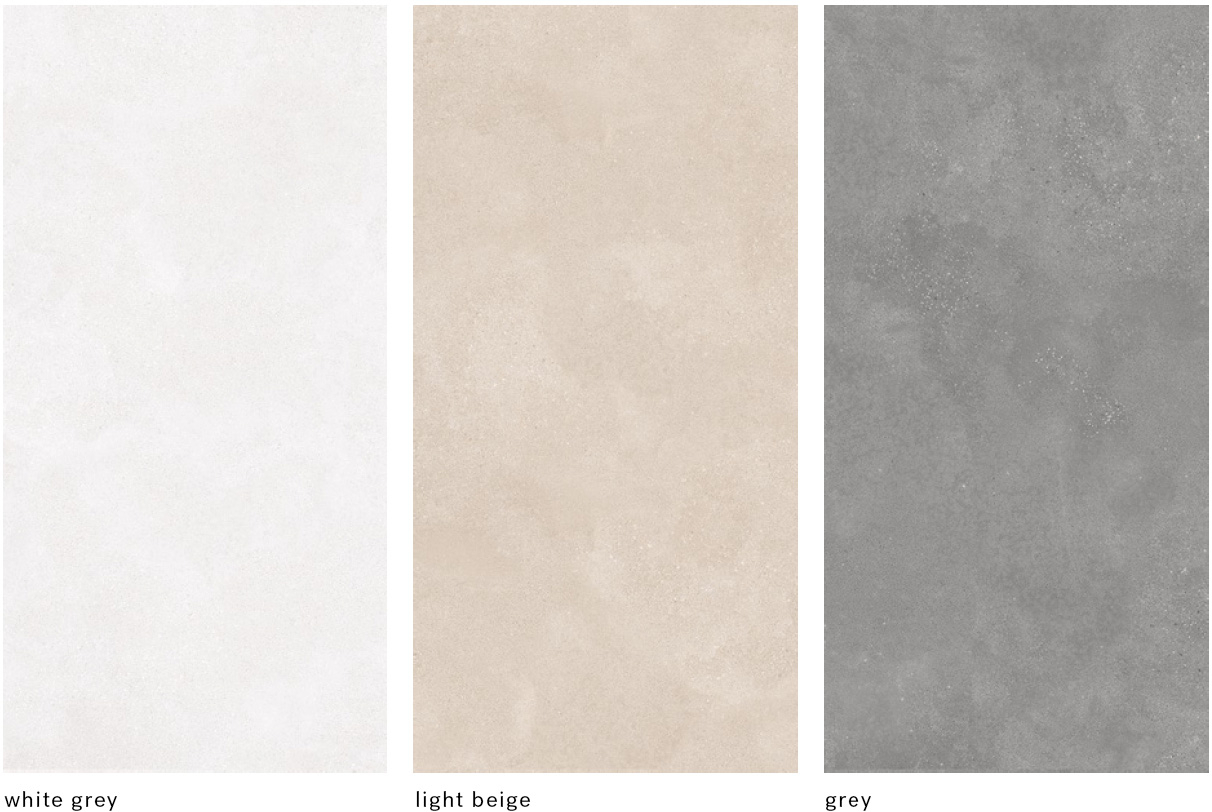

bathrooms, WC – large-format ceramic floor tiles, 60 x 120 cm, cut ceramic skirting tiles

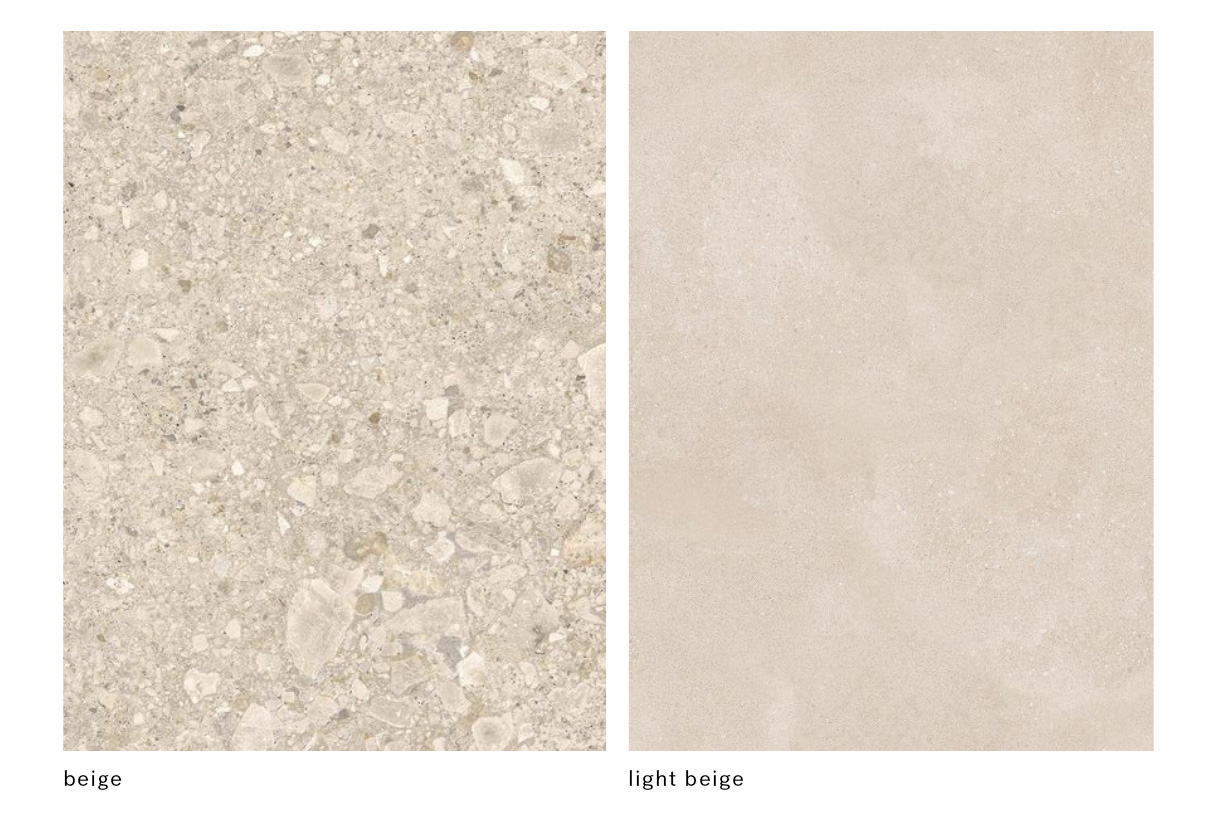

utility rooms – large-format ceramic floor tiles, 60 x 60 cm, cut ceramic skirting tiles

Floors – common areas

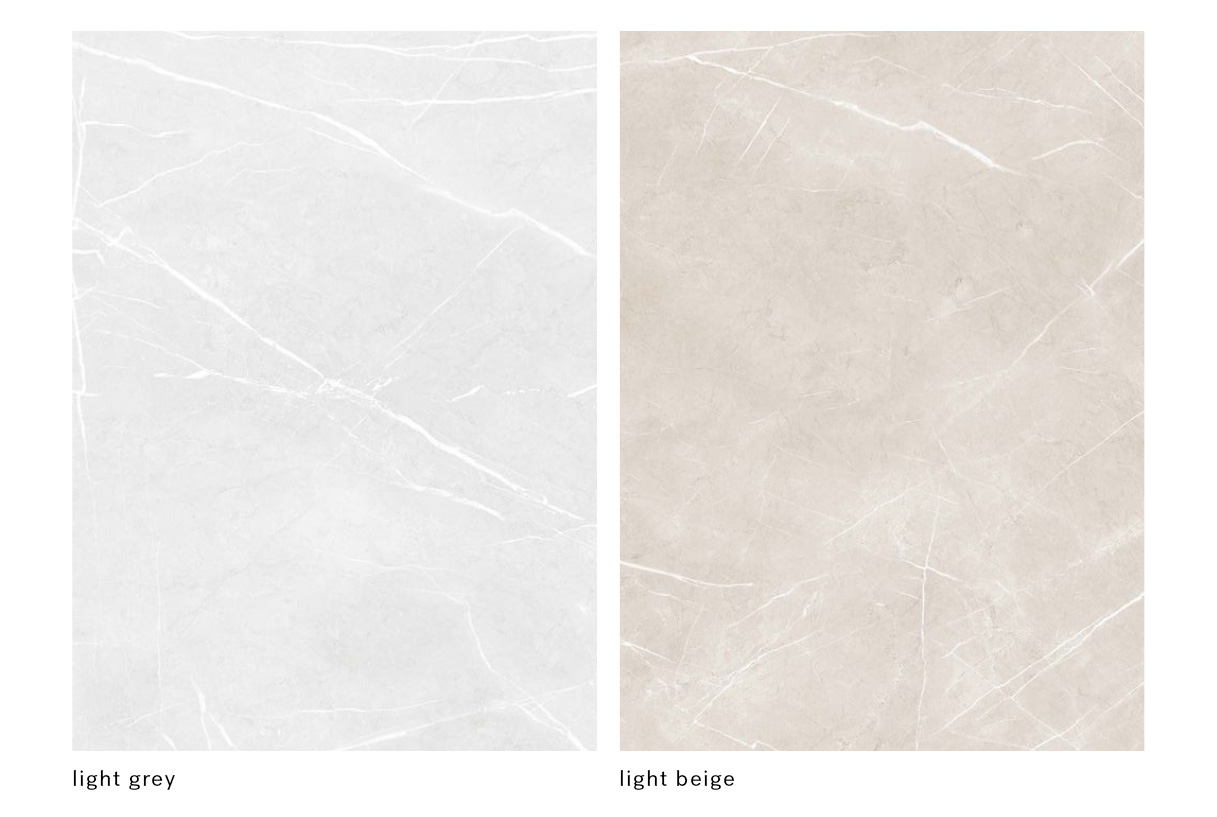

corridors – large-format ceramic tiles, 60 x 120 cm
exterior landings – epoxy floor finish
stairs – epoxy floor finish
garage parking spaces – epoxy coating

Walls

partition walls between flats – gypsum plaster, white paint in two coats
partition walls inside flats – drywall (Habito/Fermacell), white paint in two coats
common areas – smooth plaster or finish coat, white paint in two coats
garage: reinforced concrete – walls with paint finish

Ceiling

skim coat, alternatively gypsum plaster, white paint in two coats
suspended ceilings – plasterboard panels, white paint in two coats

C. DOORS AND WINDOWS

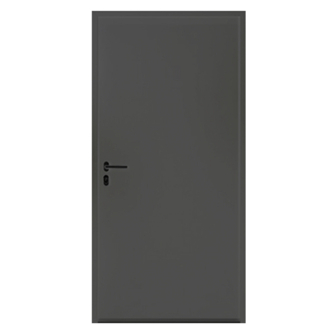

Entrance Doors

main entrance door to the building – aluminium frame, glazed and electric locking
Lignis apartment entrance door – door height 2.1 m, RC3 folding security door, surface CPL laminate – white paint finish, knob/lever handle, RC3 two-part steel frame, wooden threshold

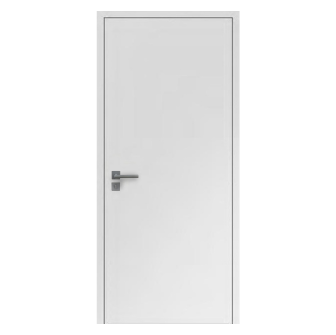

Interior Doors

semi-grooved, square edge, white paint, wooden door frame
two-piece exposed hinges, standard lock with visible latchbolt
lightweight chipboard infill; MT Lucy fitting; square stainless steel rosette

Windows and Balcony Doors

multi-chamber plastic frames, triple glazing frame and sash colour – anthracite (both interior and exterior)
1st-floor facade glazing will use Connex security glass
window and balcony-door fittings will be perimeter type with rolling and security components
provisions for blinds are on all windows; blinds on the west and south facades are included as standard
interior windowsill is in white; exterior windowsill is metal with a painted finish

Note: The Seller reserves the right to substitute goods of the same quality and specifications in the event of product unavailability or discontinuation of a collection by the manufacturer.

D. FACILITIES AND FURNISHINGS

Bathroom

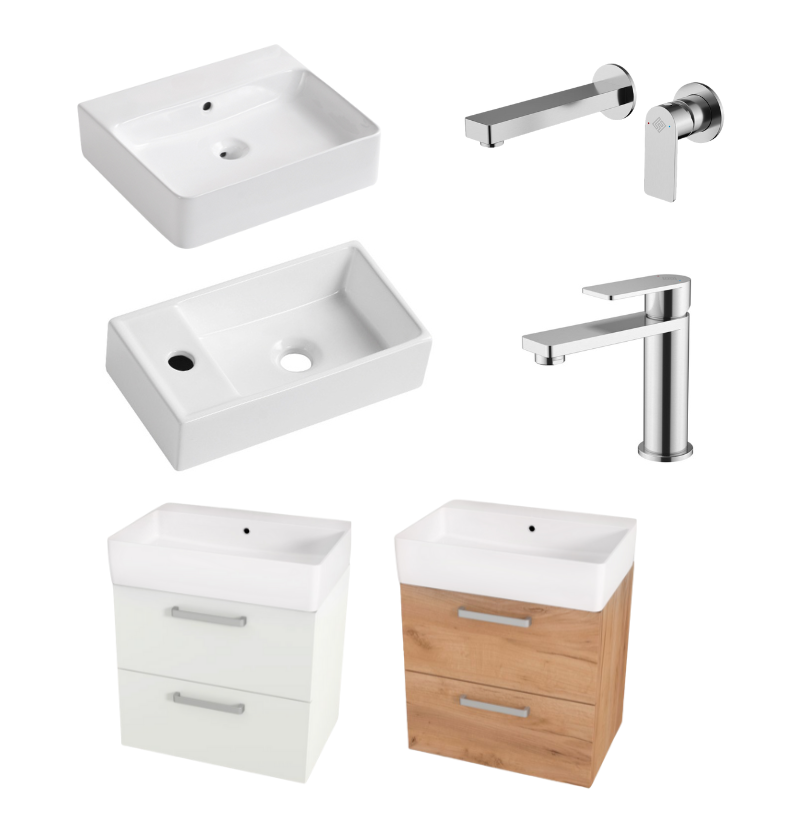

Aqualine S-Joy washbasin – 60 cm wall-hung type, concealed basin mixer, stainless steel
cabinet under the S-Joy washbasin – wood decor finish or white

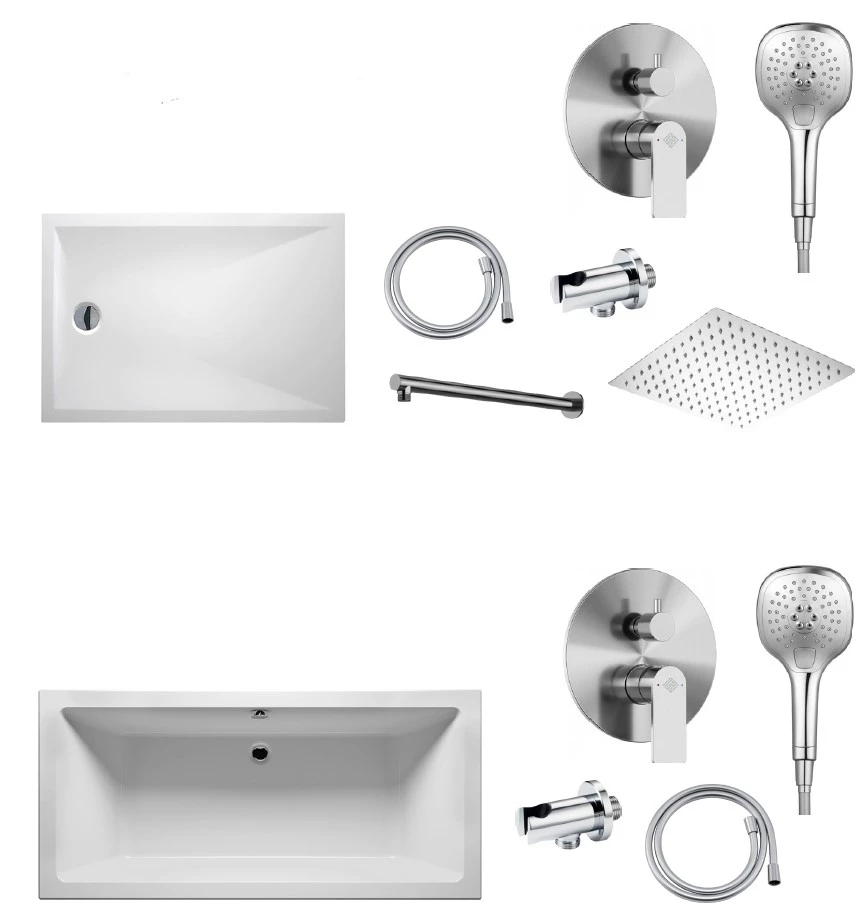

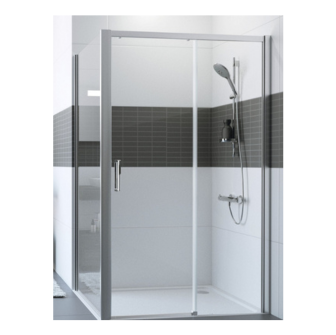

shower enclosure – sliding door with fixed panel and side wall – silver semi-gloss / clear glass with easy-clean coating, 150 or 200 cm
shower tray – cast marble, 150 x 80 cm; concealed shower mixer; shower set with rail, stainless steel
shower arm and 30 x 30 cm overhead shower, stainless steel
Lugo bathtub, acrylic, 170 x 75 cm, concealed bathtub mixer, shower set with rail, stainless steel

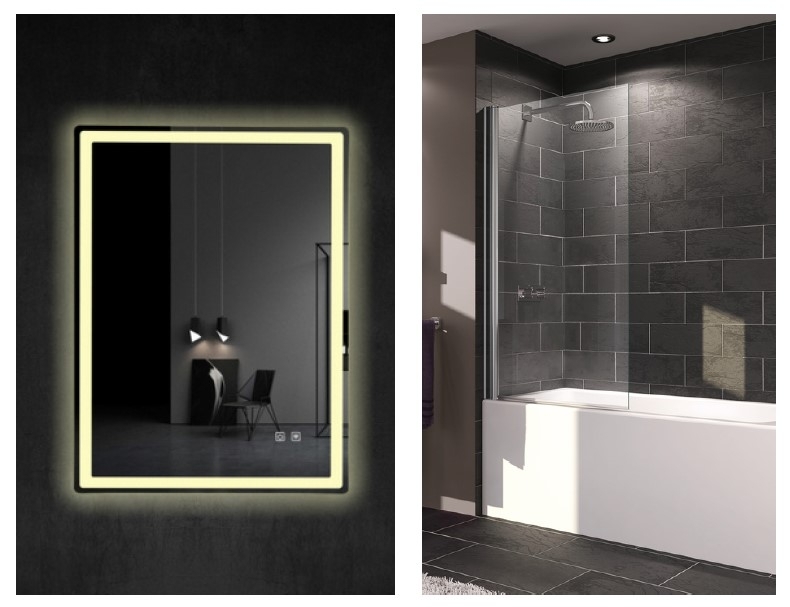

optional item in standard equipment – bathtub screen, 75 x 140 cm

Separate toilet (for selected apartments)

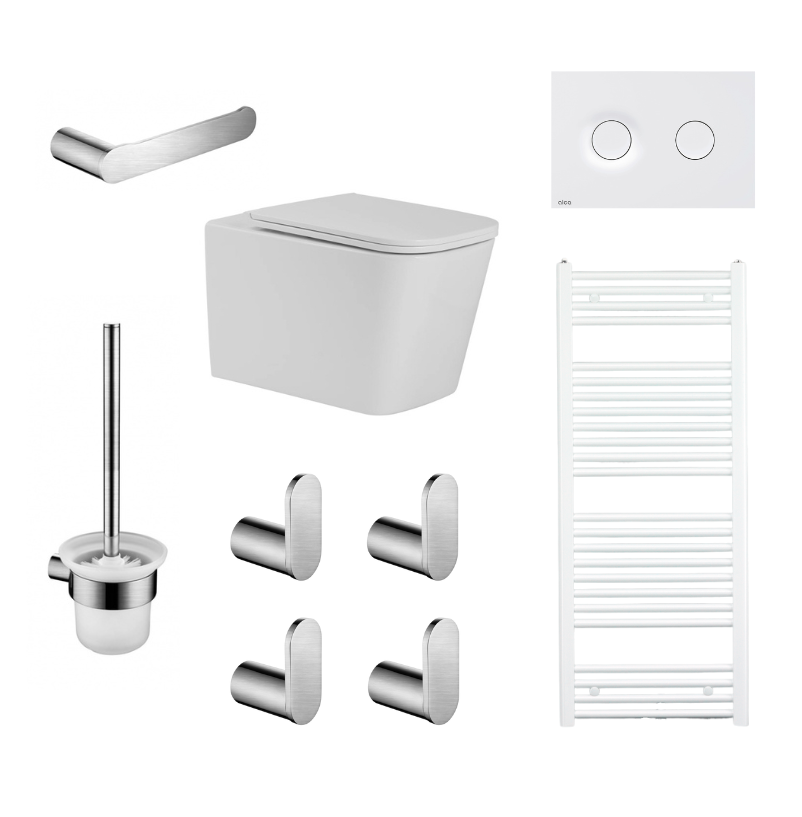

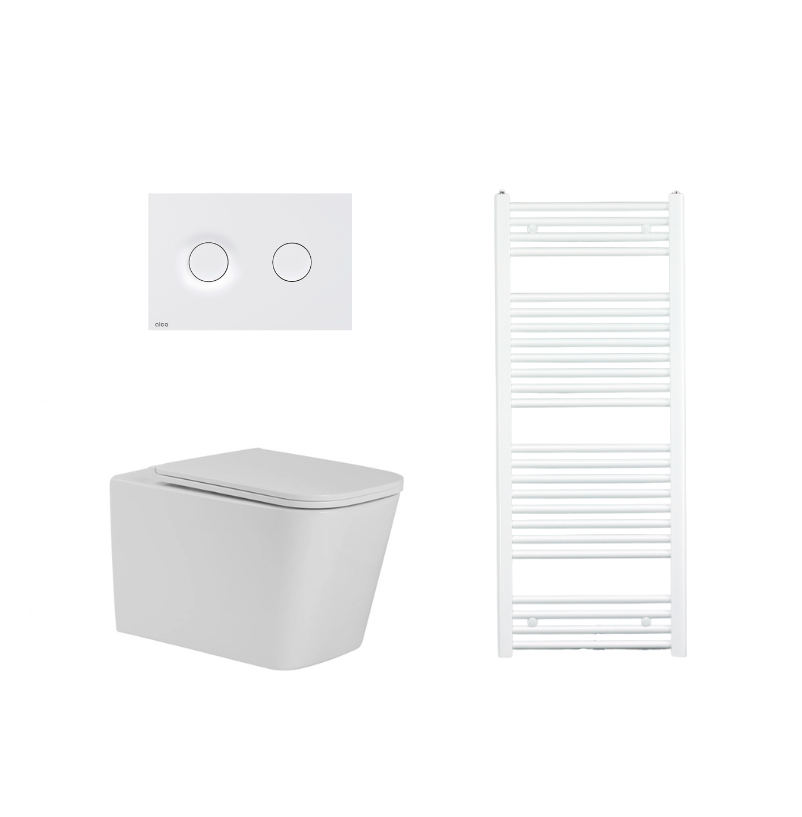

T-joy 2.0 square rimless toilet, super-twist, incl. slim soft-close white seat, concealed cistern with M1976 flush button – white matt
tlačítkem M1976 - bílá mat
Aqualine U-Joy hand basin – 40 cm, wall-hung, with 110 mm hand-basin mixer, supplied without waste set, stainless steel
Kitchenette
provisions for cold- and hot-water inlets – terminated at the wall nearest the shaft (not extended to future fixtures)
provisions for kitchen-sink drainage – terminated at the wall nearest the shaft (not extended to future fixtures)
provisions for a recirculating cooker hood
provisions for electrical installation (separate socket circuit, lighting circuit and cooker circuit), not extended to future sockets and switches

E. SERVICE INSTALLATIONS

Electrical Power Distribution

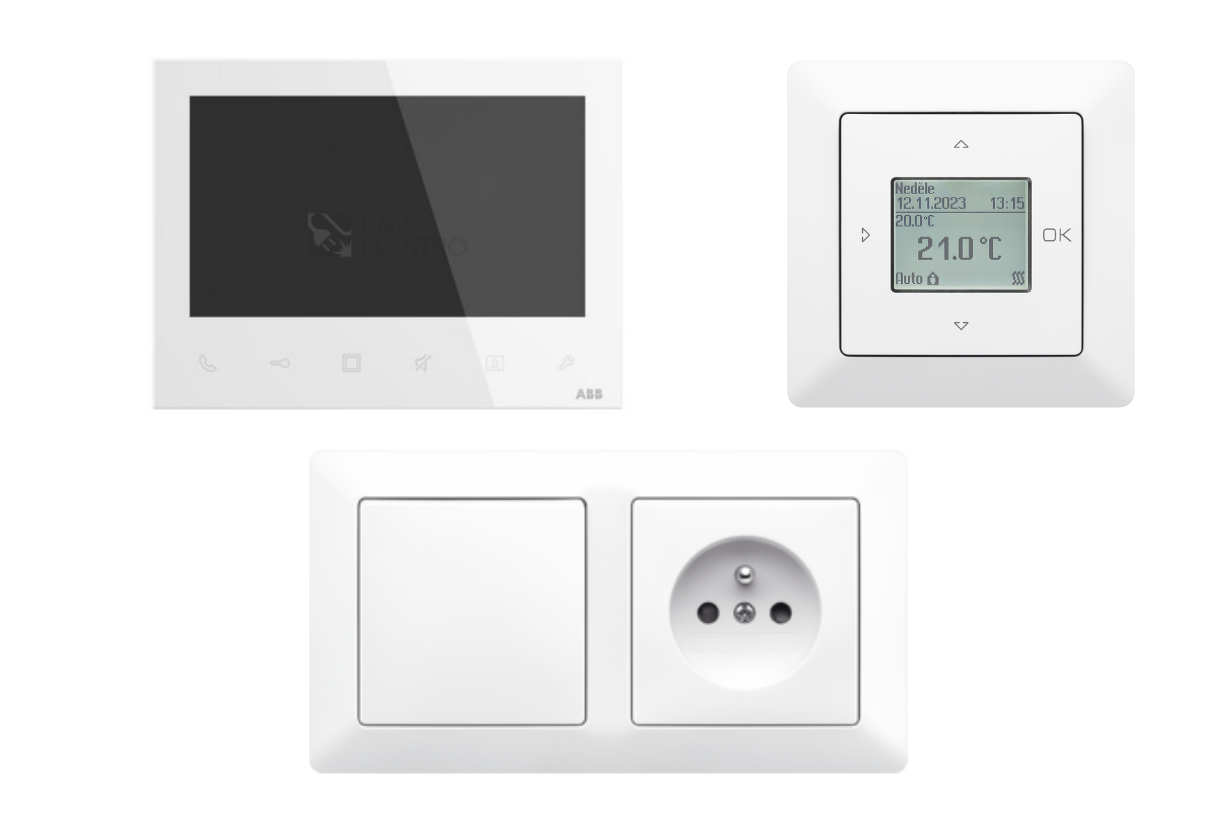

switches and sockets in white
each apartment’s switchboard contains a main switch and circuit breakers
wiring provisions for lights (lights themselves are not included)

Low-Voltage Systems

home audio/video intercom with electronic door release, wall-mounted
electric doorbell
in the living room: 1x socket for data and TV
in-apartment media/communications panel

Ventilation

apartments are ventilated by a heat-recovery unit

Hot Water and Heating

provided by a heat pump
all habitable spaces are heated by hot-water underfloor heating
in all habitable rooms, the indoor temperature will be regulated by a room thermostat
in summer, the heat pump system can be used to cool the building (note: this is not an air-conditioning unit)

F. CONSUMPTION METERING AND UTILITY CONNECTIONS

cold- and hot-water meters in installation shafts, with remote reading
apartment electricity meter installed in the building’s meter cabinet
weak-current wiring connected to a fibre-optic line owned by the data-service provider, running to the in-apartment weak-current distribution board

G. PARKING SPACES

the parking spaces are in shared garages on the building’s underground level or on the property
the garages have motorised doors with remote control
the garage floors will be treated with a coating
the garages are not fitted with suspended ceilings The ceiling structure will remain exposed, as well as the building services installations
