Villa Resort Kbely Standards

A. BUILDING CONSTRUCTION

Basics

spread foundation – foundation slab on strip footings

Vertical Structures

loadbearing walls – masonry system
non-loadbearing walls – masonry system
installation walls in bathrooms and utility rooms made of plasterboard

Horizontal Structures

ceilings – reinforced-concrete construction
staircases – reinforced-concrete construction

Facades

ETICS external thermal insulation system

Roofs

flat roof – single-layer structure insulated with EPS (tapered wedges), waterproofed, designed as a green roof with extensive greenery

Gardens and Surroundings

garden fencing with wire-mesh infill
sloping terrain in selected gardens
trees and greenery are planted in selected areas
an entrance gate leads to the parking spaces
entrance includes a garden gate
bin storage and a lockable outdoor storage space are available in front of the building
facade lighting
frost-proof valve on the facade
outdoor socket – 230 V

Terraces

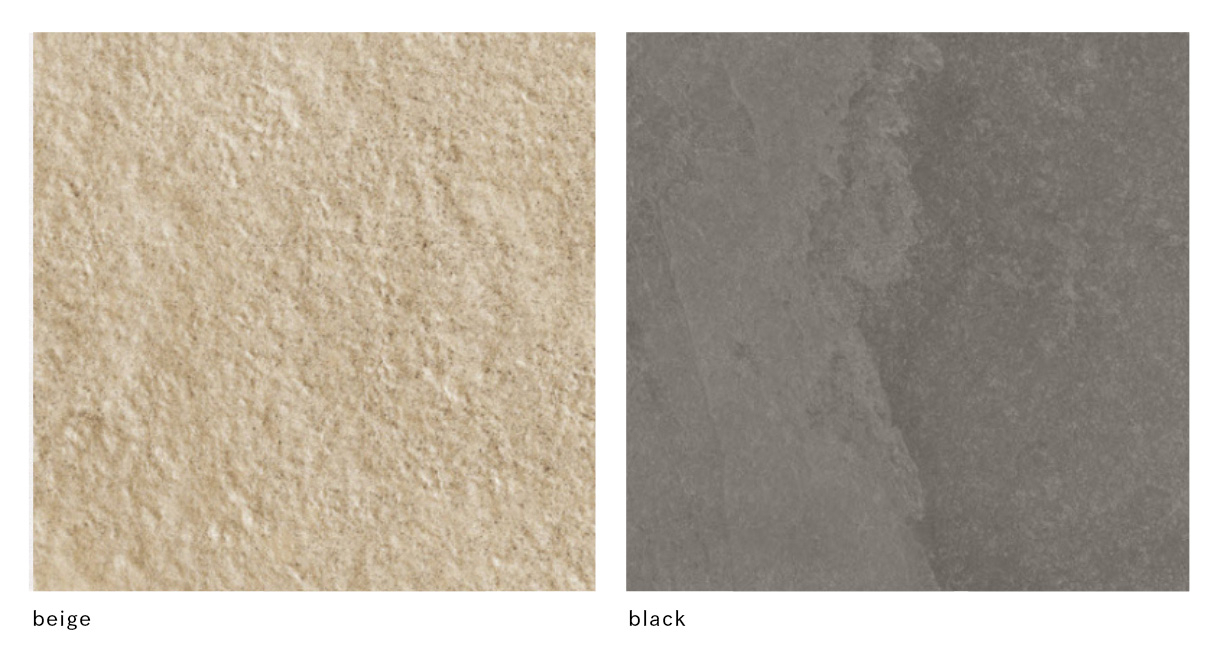

concrete tiles, 50 x 50 or 60 x 60 cm

Parking spaces and Walkways

surfaces of concrete paving; some parts driveable
covered parking space for two cars

B. INTERIOR FINISHES

Floors – living spaces

rooms, kitchenette and hallway – wood-veneered floor

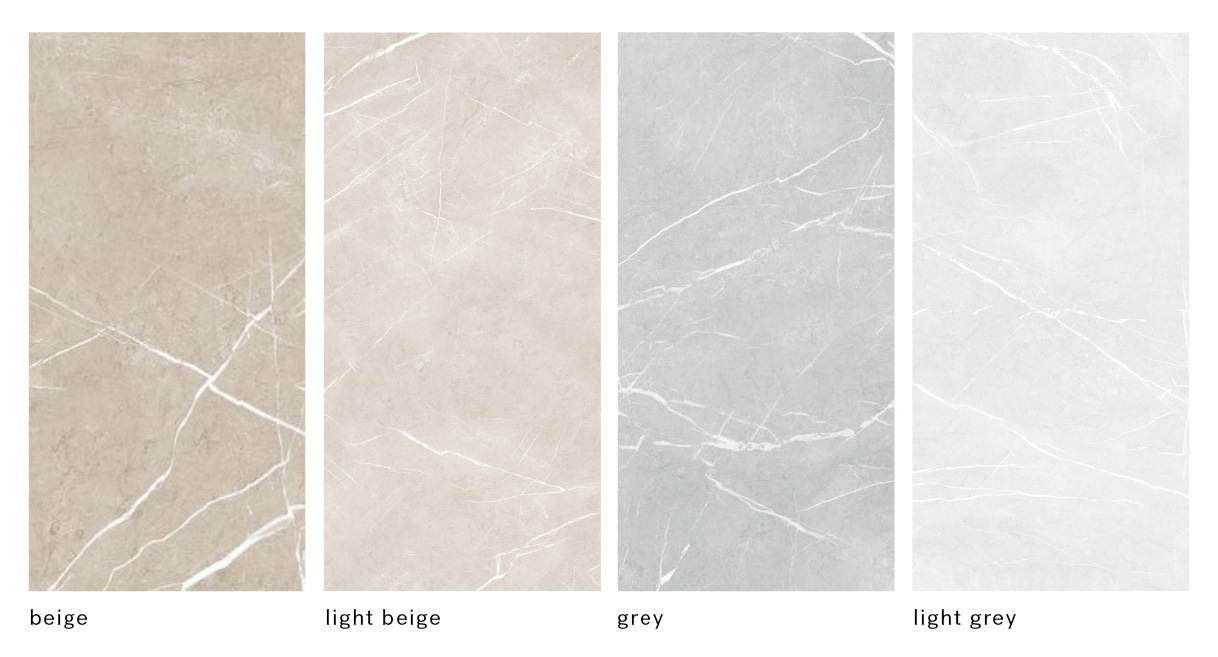

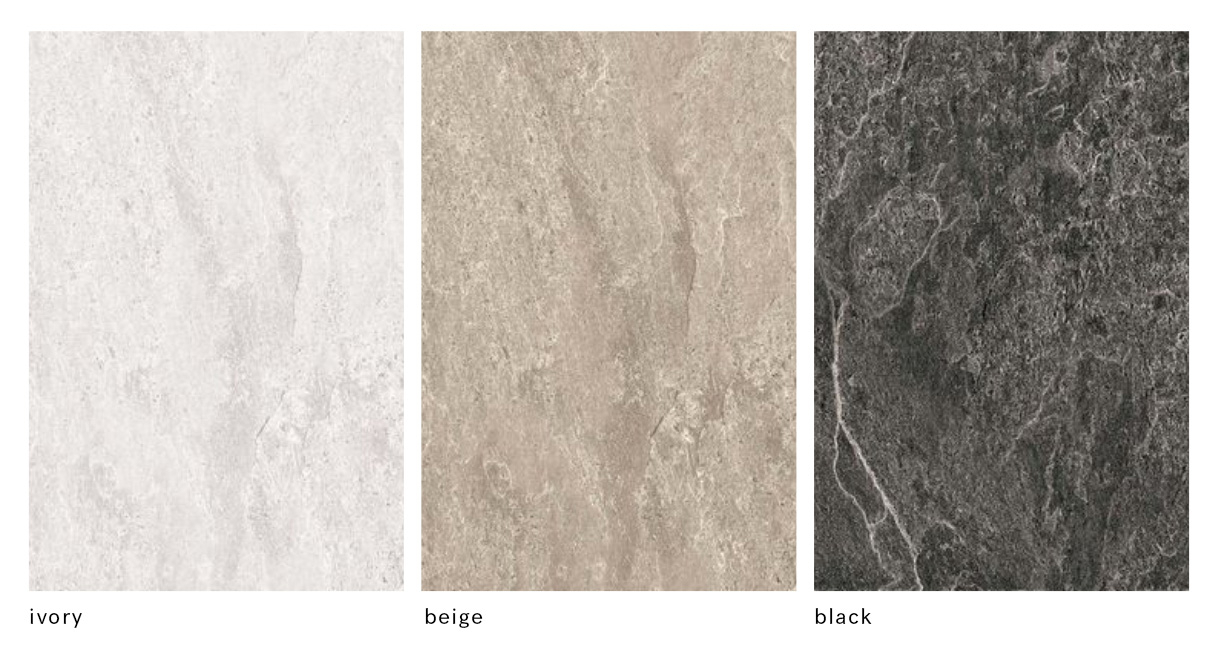

bathrooms, toilets – large-format ceramic tiles, 60 x 120 cm, cut ceramic skirting tiles

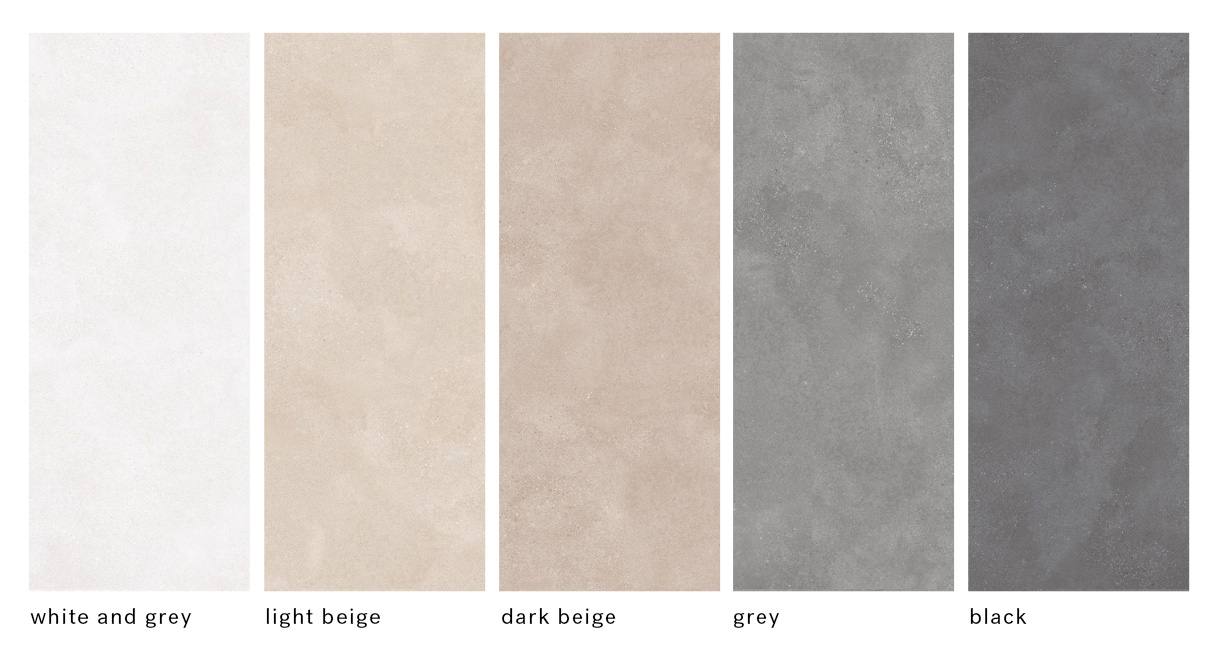

utility room – large-format ceramic tiles, 60 x 60 cm, cut ceramic skirting tiles

Walls

masonry walls – gypsum plaster, white paint in two coats

Ceiling

skim coat, or gypsum plaster, white paint in two coats
lowered ceilings – plasterboard and painting in two layers

C. DOORS AND WINDOWS

Entrance doors

main entrance door to the house – safety painted steel door, colour dark grey/anthracite
Door height 2.45 m, security class RC3, lever/lever handle, steel frame, wooden threshold

Interior Doors

flush interior door, square-edged, painted white, with a timber frame and casing, height 2.1 m
concealed hinges, lock with magnetic latchbolt
lightweight chipboard infill, MT Lucy fitting with square rosette

Windows and Balcony Doors

multi-chamber plastic construction, insulated triple glazing, frame and sash colour is anthracite for both interior and exterior
facade glazing on the 1st floor will use Connex safety glass
window and balcony-door fittings will be perimeter type with rolling and safety elements
electrically operated blinds
interior windowsill is in white; exterior sill is metal with a painted finish

D. FACILITIES AND FURNISHINGS

Bathroom

Aqualine S-Joy washbasin – 60 cm or 80 cm, wall-hung; concealed basin mixer, stainless steel
cabinet under the S-Joy washbasin – wood decor or white finish
square shower enclosure, sliding doors with corner entry, silver semi-gloss / clear glass with easy-clean coating, 90 x 90 x 200 cm
single sliding door with fixed panel for niche, silver semi-gloss / clear glass with easy-clean coating, 120 x 200 cm
hinged door with fixed panel for side wall, silver semi-gloss / clear glass with easy-clean coating, 100 × 200 cm
concealed shower mixer; shower set with rail; shower arm and 30 × 30 cm overhead shower, stainless steel
Lugo bathtub, acrylic, 170 × 75 cm; concealed bath mixer, stainless steel; shower set with rail, stainless steel
optional: bath screen, 75 x 140 cm

Separate toilet

T-Joy 2.0 Square WC, rimless Super-Twist, incl. slim soft-close white seat; concealed cistern with M1976 flush button – matt white
Aqualine U-Joy hand basin – 40 cm, wall-hung, with 110 mm mixer, without waste set, stainless steel

Kitchenette

provisions for cold- and hot-water inlets – terminated at the wall (not extended to future fixtures)
provisions for kitchen-sink drainage – terminated at the wall (not extended to future fixtures)
provisions for a recirculating cooker hood
provisions for electrical installation (separate socket circuit, lighting circuit and cooker circuit), not extended to future sockets or switches

Note: The Seller reserves the right to substitute goods of the same quality and specifications if unavailable or if a collection is discontinued by the manufacturer.

E. SERVICE INSTALLATIONS

Electrical (power)

ABB Zoni switches and sockets in white
each house’s switchboard contains a main switch and circuit breakers
wiring provisions for lights (light fittings are not included)

Low-Voltage Systems

1 socket for data and TV in living rooms
in-house low-voltage distribution board
ABB smart home system (control of blinds, temperature, video intercom, heat-recovery ventilation)

Ventilation

provided by a Zehnder heat recovery unit

Hot Water and Heating

provided by a heat pump
hot-water underfloor heating in living spaces
indoor temperature regulated by a room thermostat
in summer, the heat pump system can be used to cool the building (note: not an air-conditioning unit)

F. CONSUMPTION METERING AND UTILITY CONNECTIONS

water meter located in an outdoor shaft
electricity meter installed in the meter cabinet in the shared pillar in front of the building
low-voltage cabling connected to a fibre-optic line owned by the data provider, running to the in-house low-voltage distribution board

ENTRANCE DOORS

main entrance door to the house – security steel painted door, dark grey/anthracite
door height 2.45 m, security class RC3, lever/lever handle, steel frame, wooden threshold

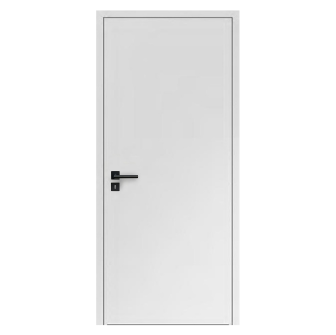

INTERIOR DOORS

flush interior door, square-edged, painted white, with a timber frame and casing
concealed hinges, lock with magnetic latchbolt
lightweight chipboard infill, MT Lucy fitting with square rosette, black finish

FLOOR

Par-ky wood-veneered flooring, 1203 x 190 x 7.2 mm, in natural oak, gently brushed surface
flooring installed using full-surface bonding
MDF skirting board – white finish
transition strip – aluminium

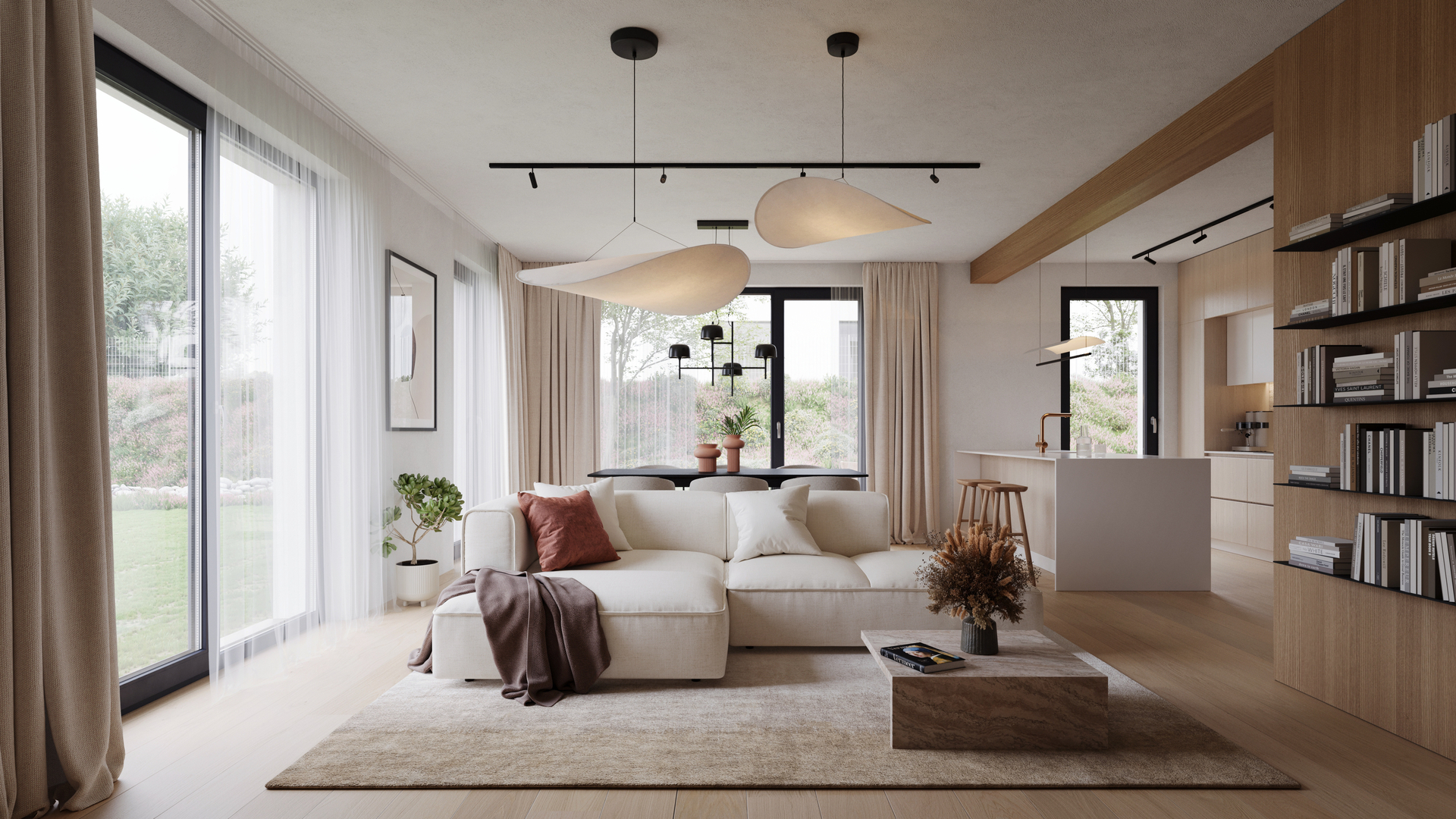

*visualisation here is for illustration only

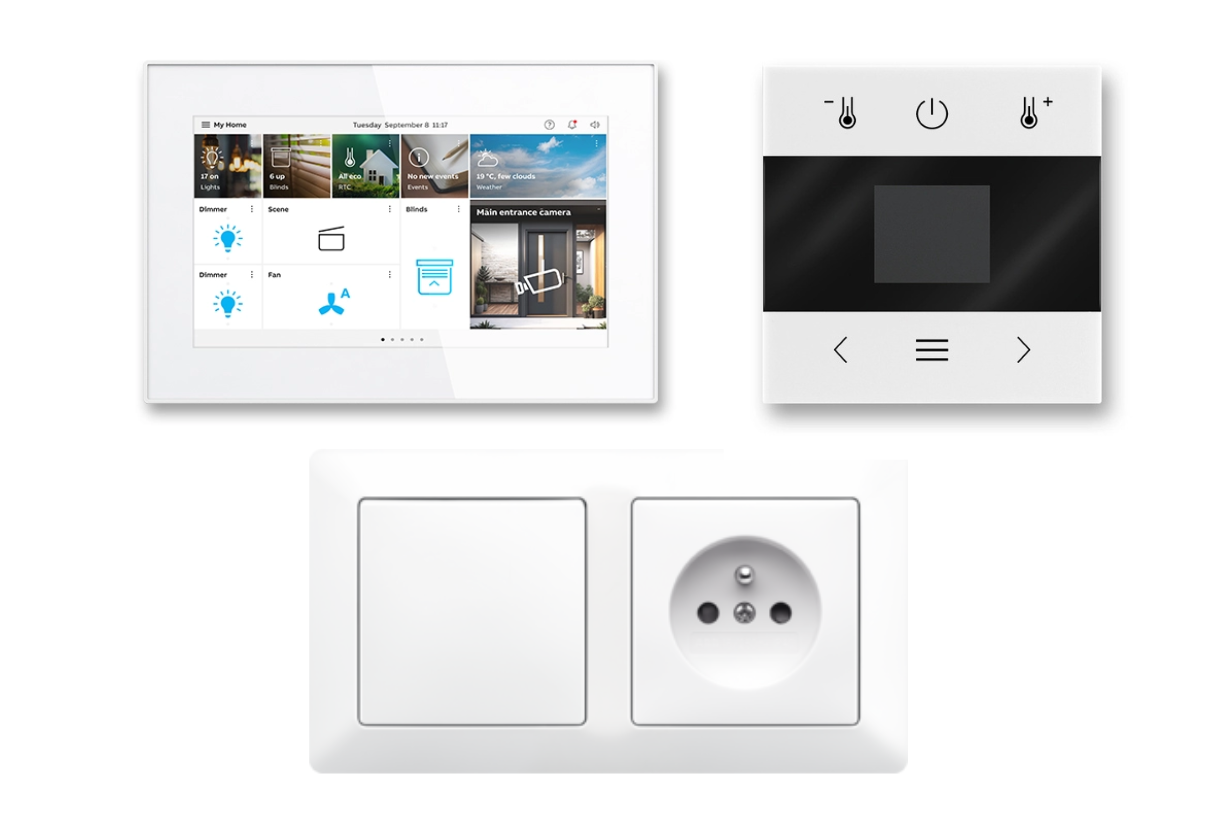

ELECTRICAL FITTINGS

ABB Zoni switches and sockets, white / ice white
universal programmable thermostat
ABB One Touch 7 tablet with video intercom and smart-home control (temperature and blinds)
